Power Panel Installed

Power Panel Installed

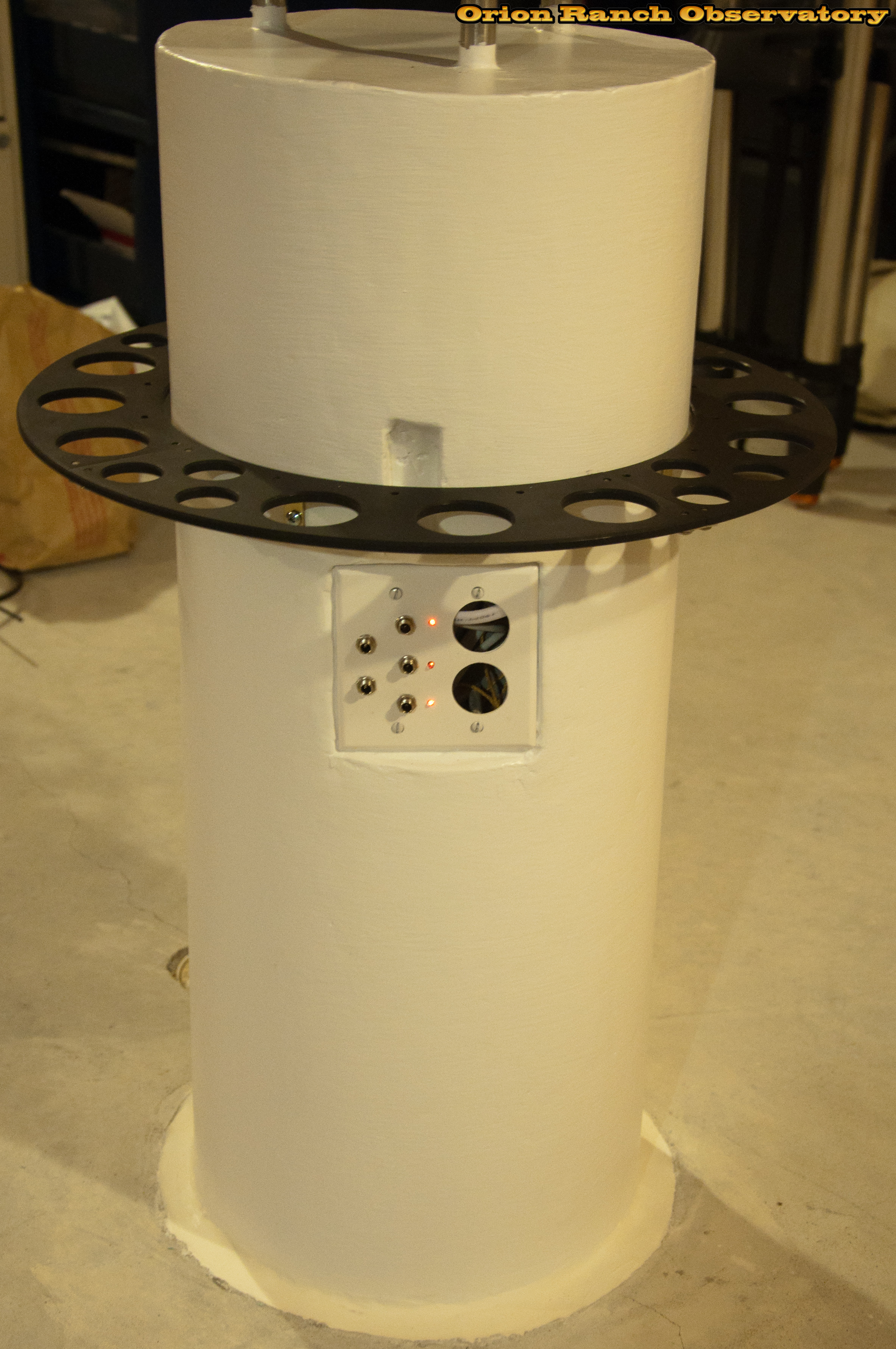

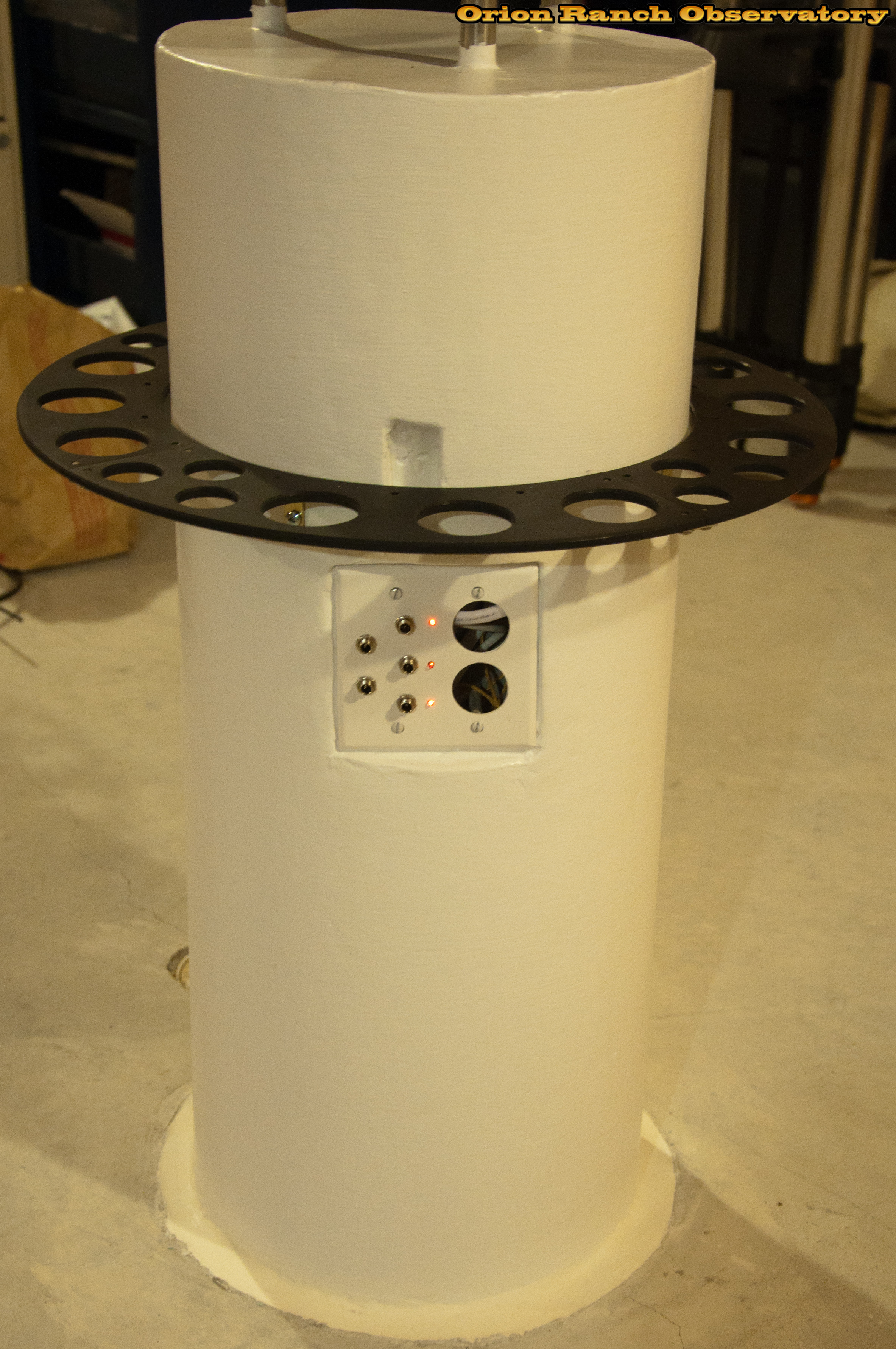

Shots of the installed panel, with the two 5V sockets on the left, and three 12V sockets. Each supply has its own pilot light and is fused at the source. The 5V sockets have a different pin size to prevent accidental interchange of the two supply voltages.
