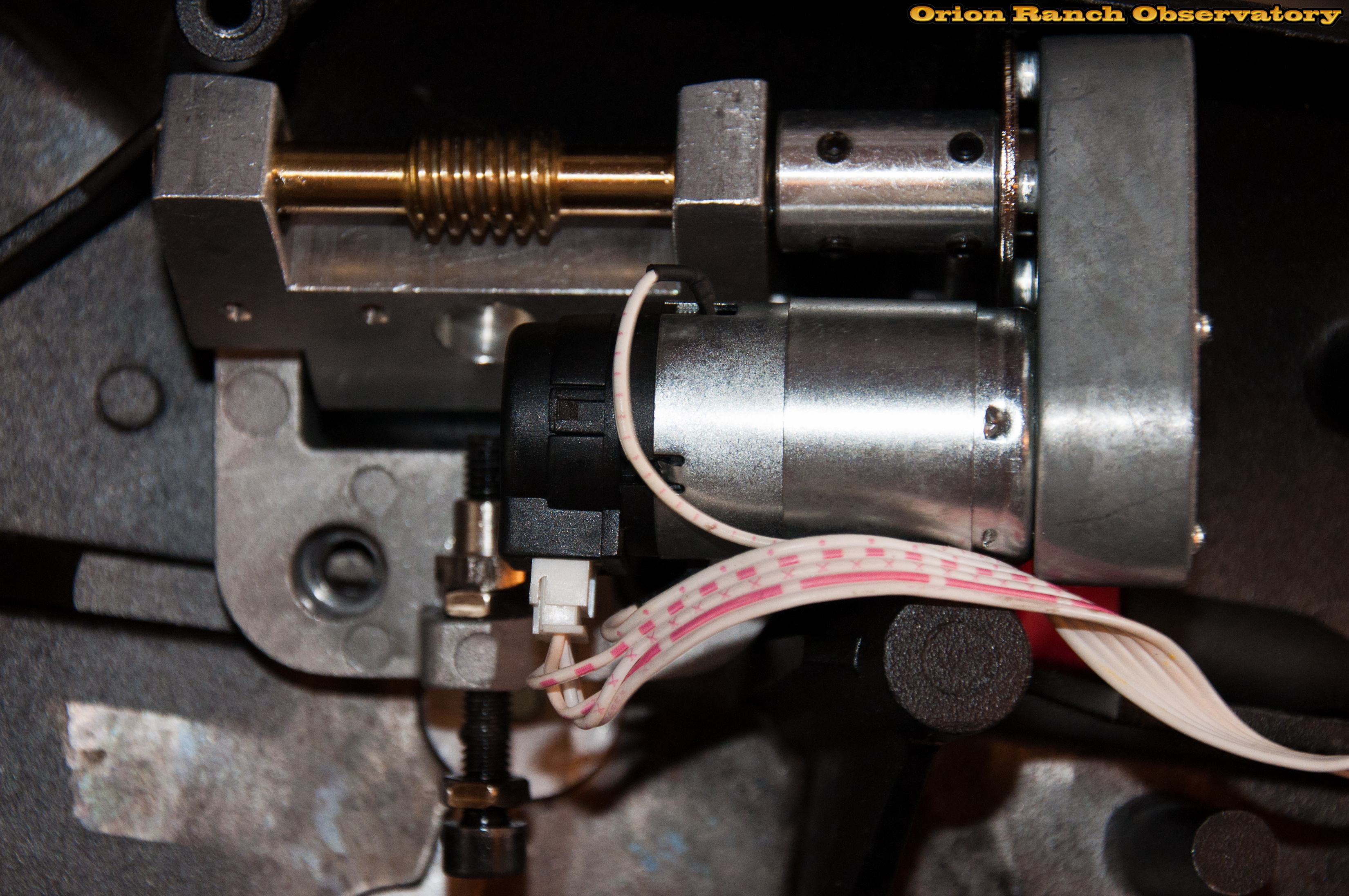

Re-assembled Drive Unit

Re-assembled Drive Unit

After cleaning and oiling inaccessible bushings and re-greasing everything, the drive is re-assembled. Keeping the pin in is tricky when installing the set screw. The set screw must be tightened enough to clamp the axis snugly enough to keep it from sliding back and forth on the axis pin.
