Cutting Beam Stiffeners

Cutting Beam Stiffeners

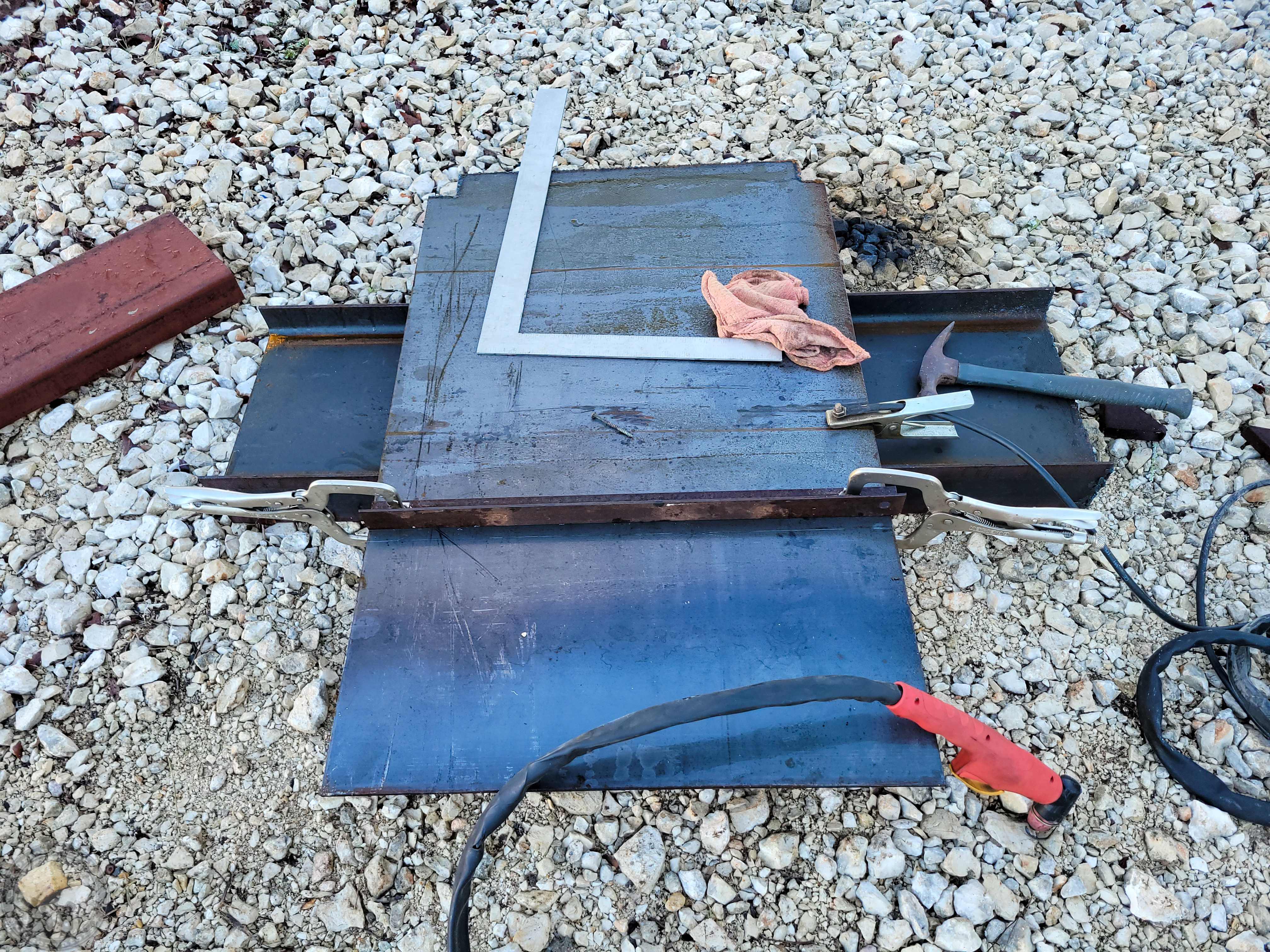

Cutting a chunk of plate the thickness of the web between flanges using the plasma cutter. I then used the cuttoff wheel to slice this into strips to create beam stiffeners to be used at mid-span and posts. These will prevent the flanges from twisting around the longitudinal direction. I switched to the cutoff blades to reduce material loss and leave a flat surface. If I used the plasma cutter, I'd still have to come back and grind it flat afterwards.
