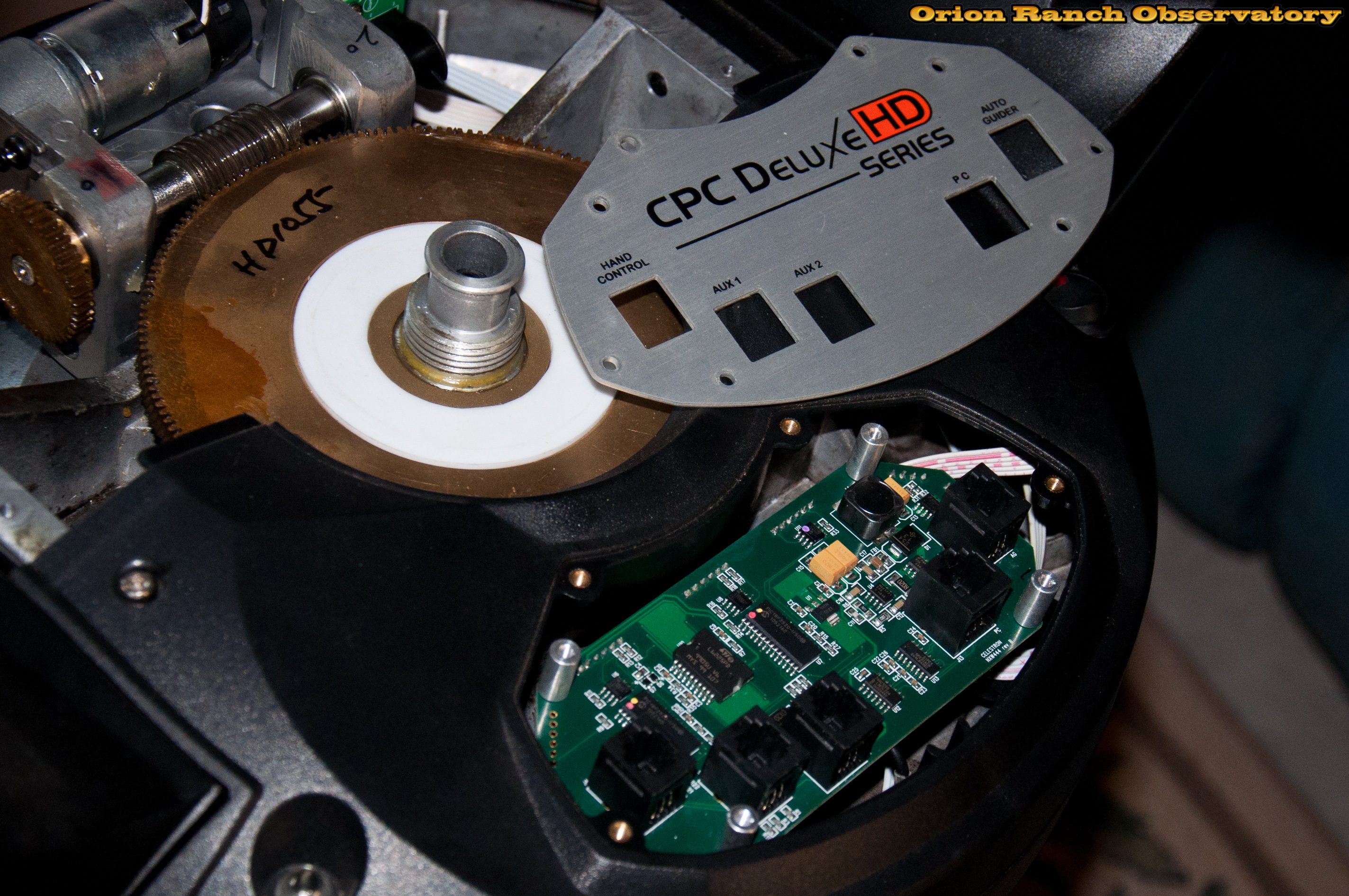

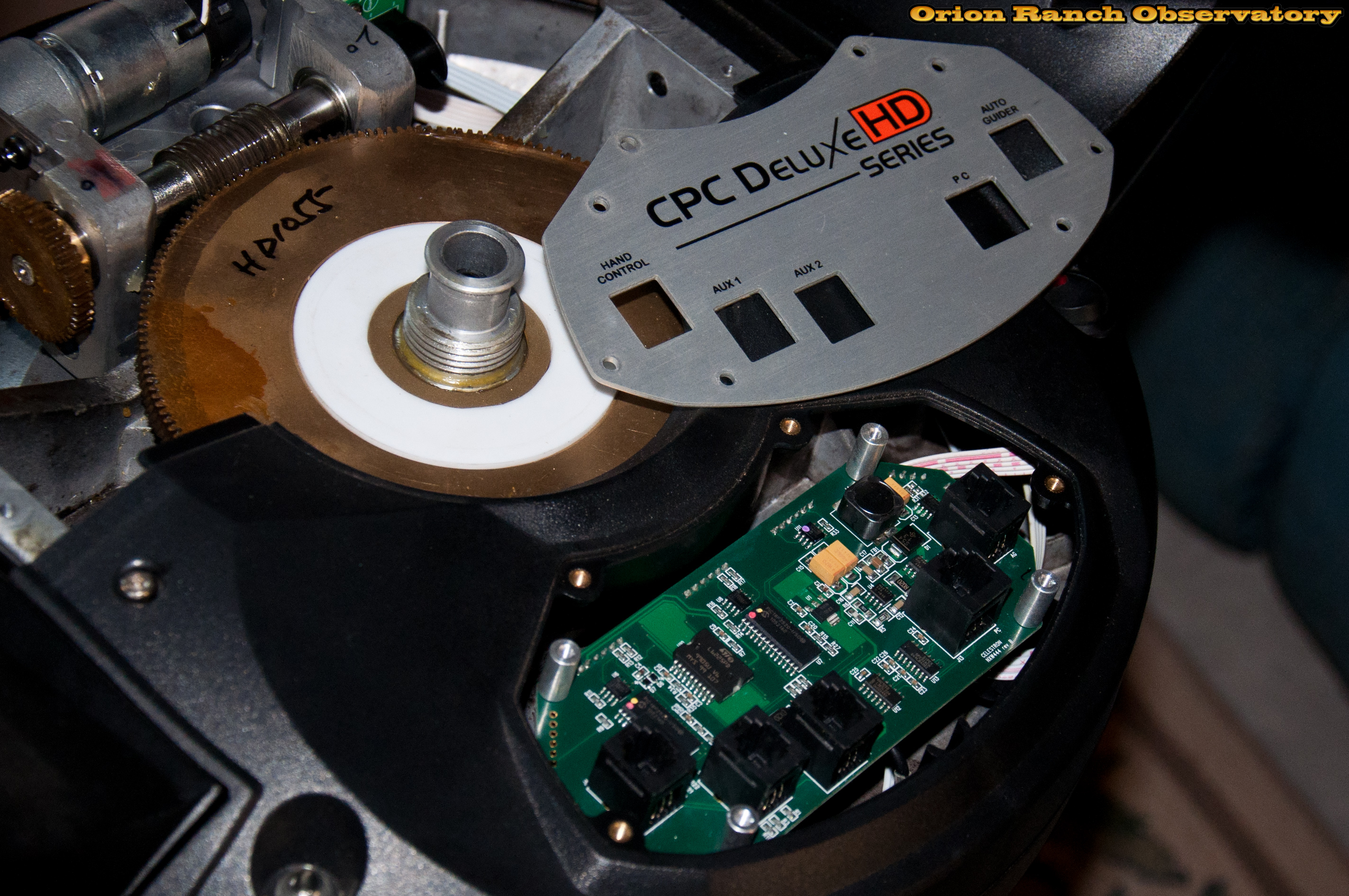

The main board cover plate must be removed to get to the third screw on the front side cover panel. Turns out it’s not necessary to remove ALL the screws. The four screws on a rectangular grid hold the controller PCB to the panel, so removing the four screws along the edges allow removal of both the panel and board. See the re-assembly pictures for more info.
