Azimuth Axis Spindle

Azimuth Axis Spindle

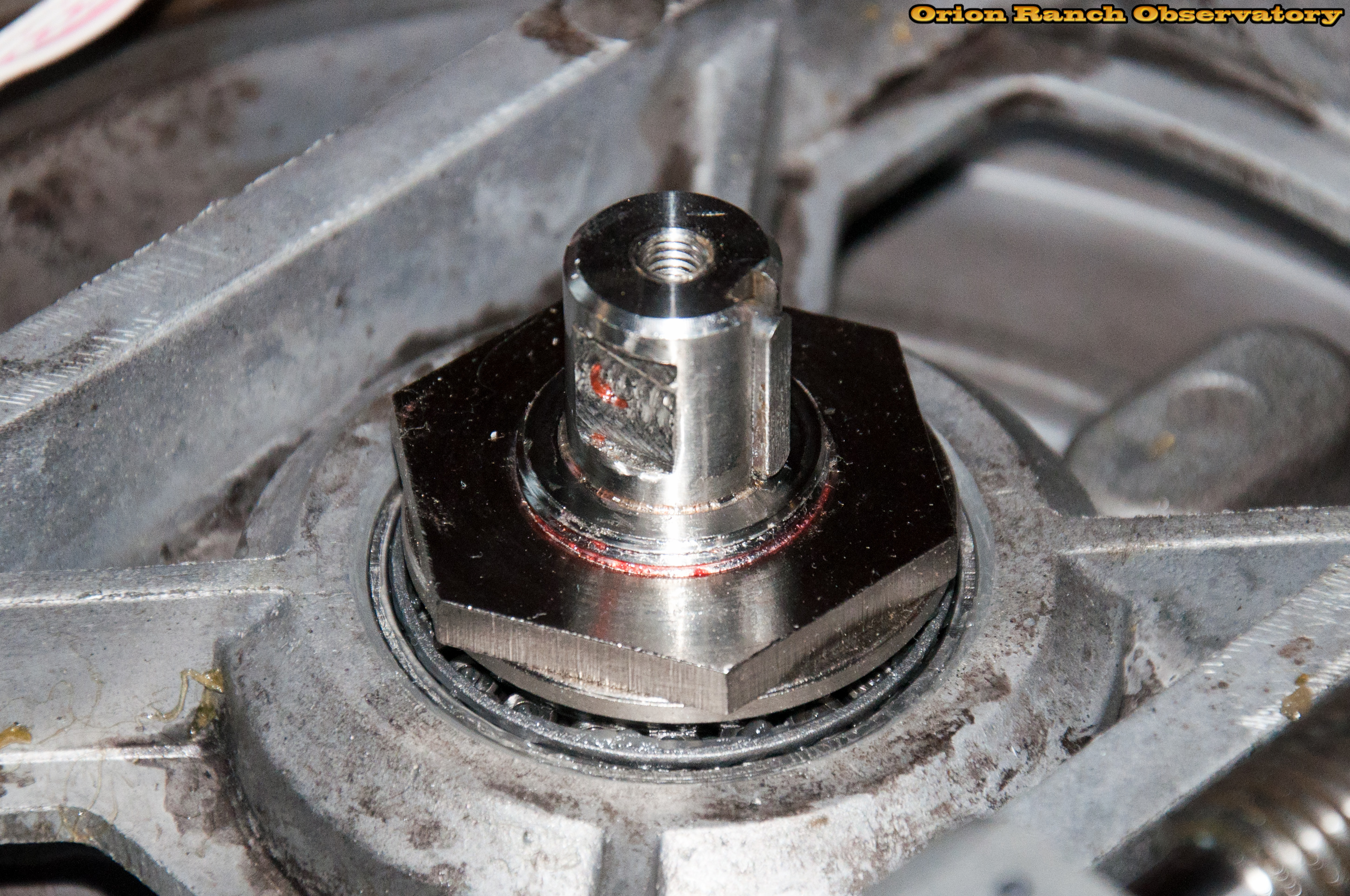

After removing the two set-screws and center screw, the clutch plate will slide off the center spindle of the AZ/RA axis. There are two flats for the setscrews and a key/keyway to keep the clutch plate solidly attached to the spindle, which is embedded in the non-moving aluminum base of the scope.
