Finished Jumper Assembly

Finished Jumper Assembly

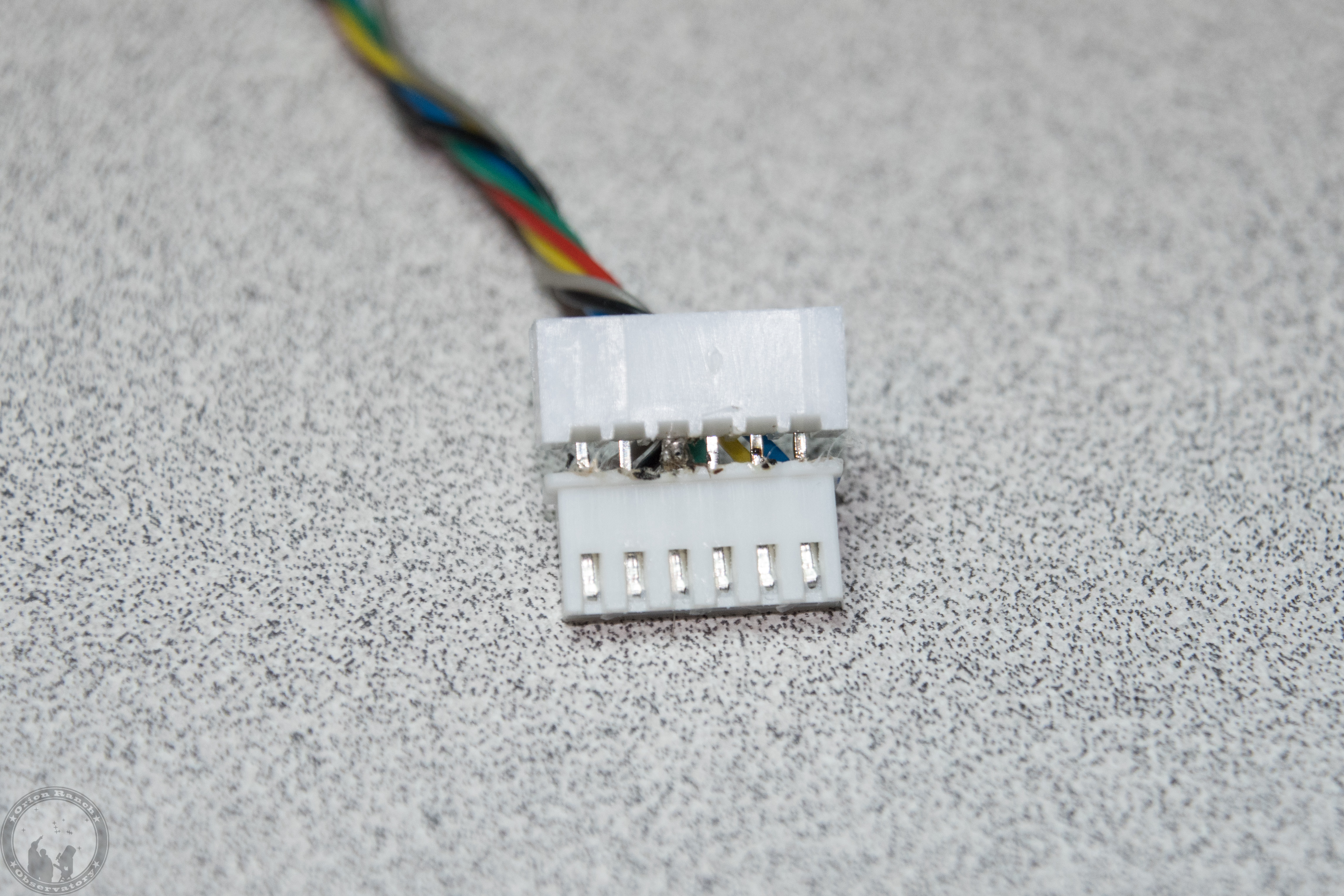

After soldering the socket to each crimp terminal, the terminals can be pushed in. I didn't quite get the solder joints clean enough for everything to push in easily, so had to manipulate individual pins and then reflow everything after assembly.
