Low Voltage Outlet Assembly

Low Voltage Outlet Assembly

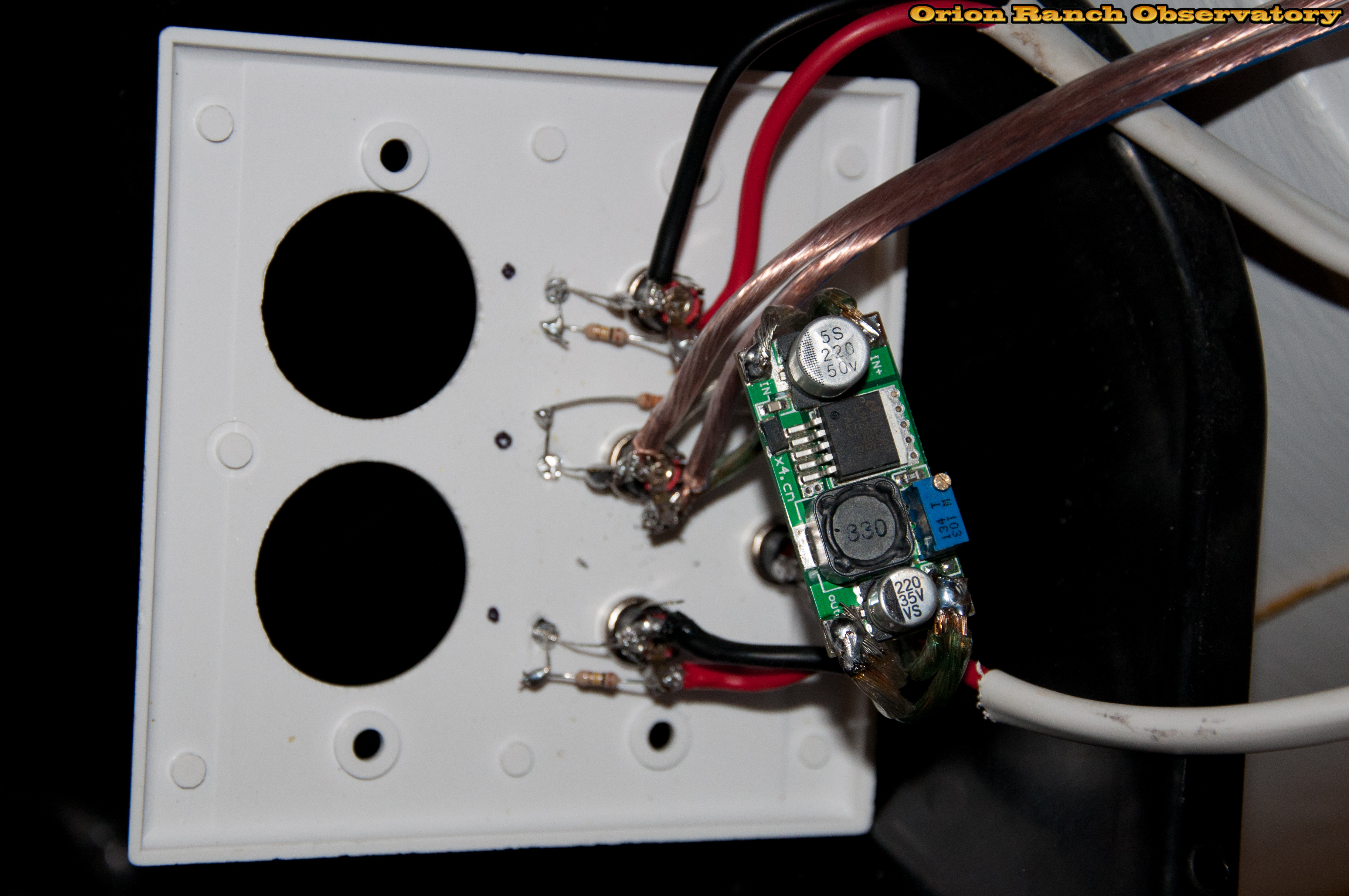

A view of the back of the low voltage outlet assembly. Three 12 AWG cables feed the 12V supplies independently to prevent voltage drop or surges from causing problems. A variable DC-DC supply feeds two 5V outputs off the center supply. At this point I'm still waiting on some parts from China, including some capcitors and 12V outlets.
