Inside the CN16 GPS

Inside the CN16 GPS

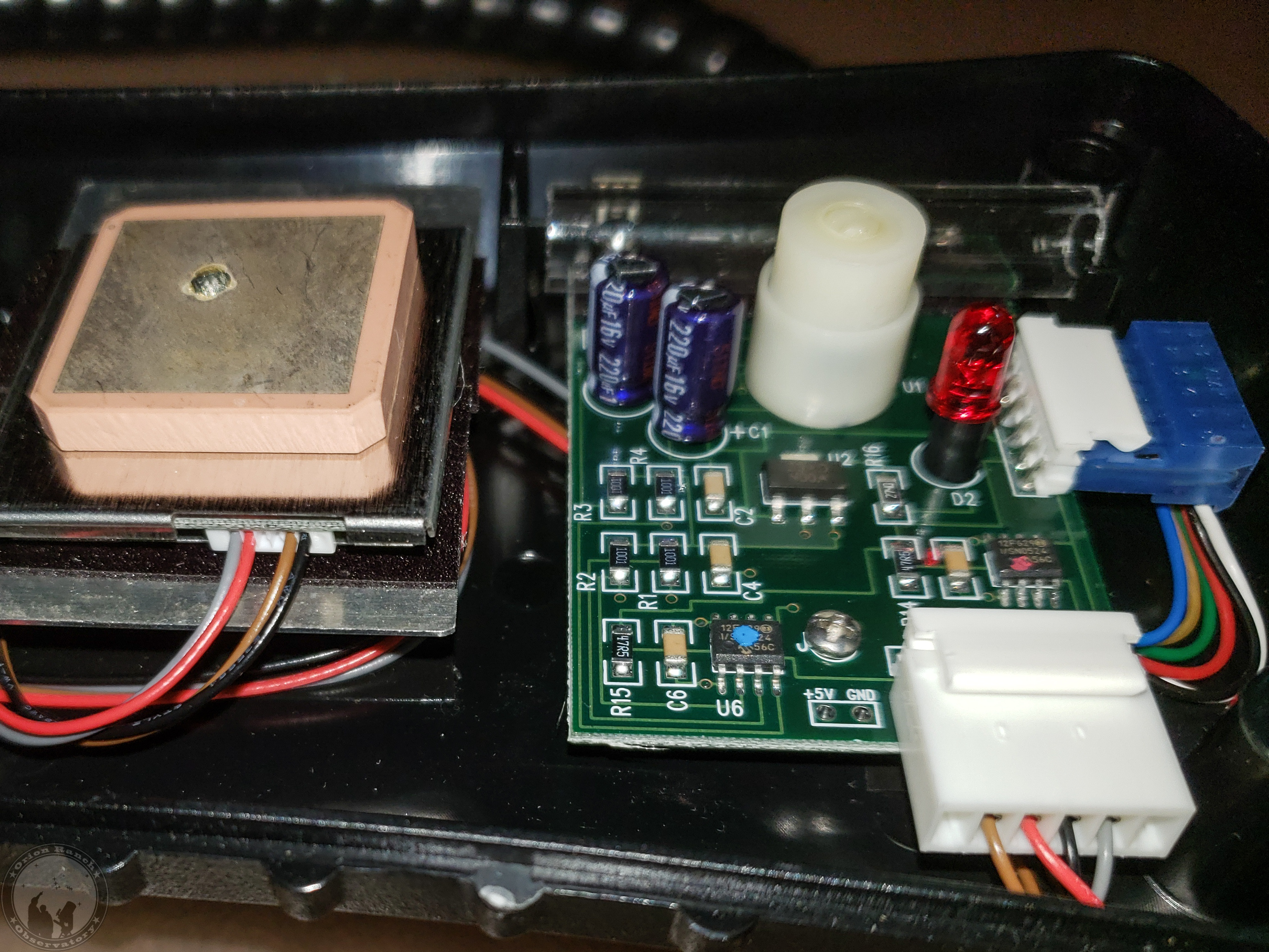

For comparison, I opened my CN16 GPS. You can see the blue serial connector and the white GPS connector. The GPS module is under the antenna. The PIC with the red dot is the equivalent of the NSW434, while the one with the blue dot runs the compass and level (long clear tube with a metal ball in it).
