Inside the Active GPS Antenna

Inside the Active GPS Antenna

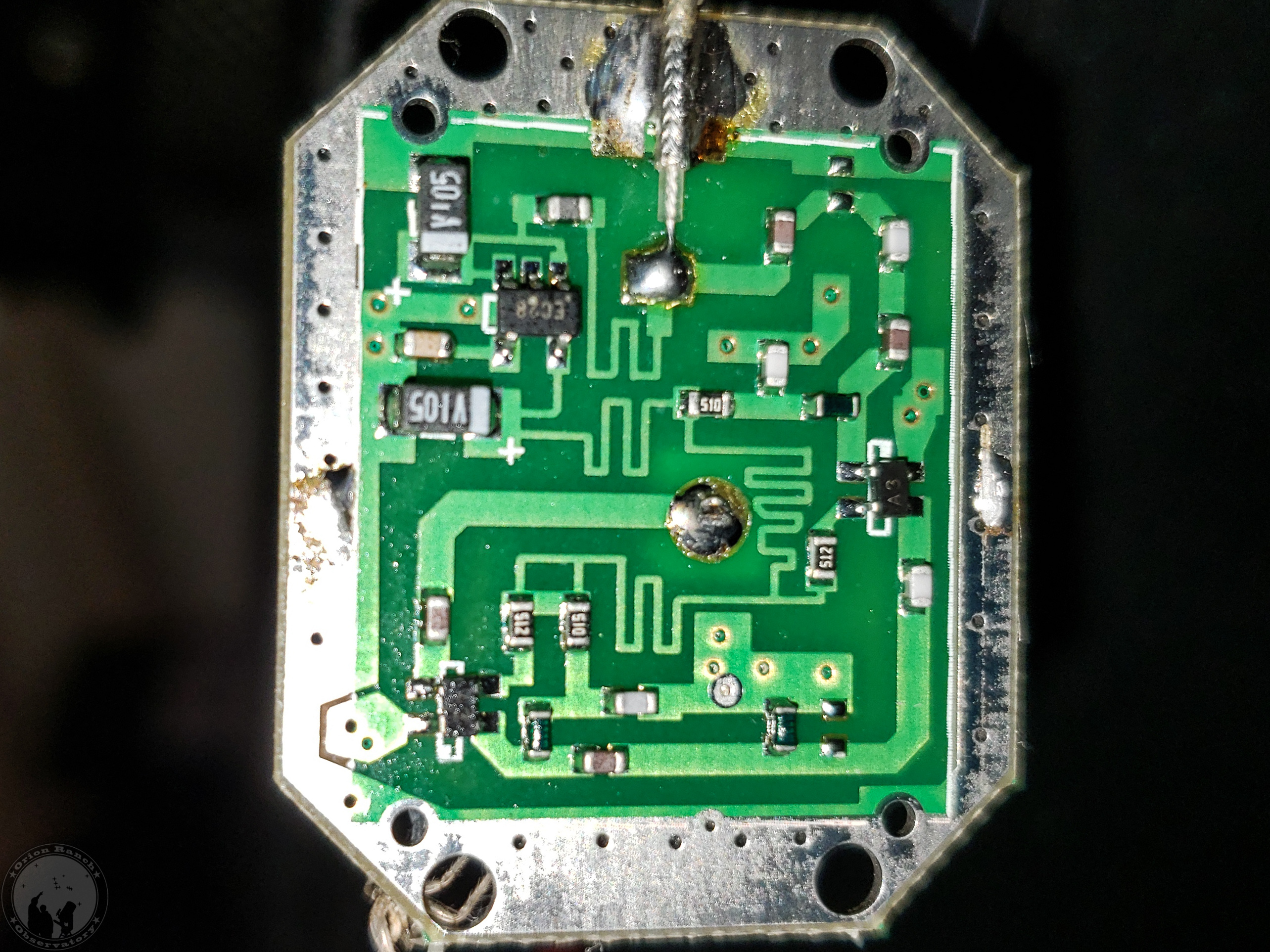

Looks like the RF path goes from the antenna connection at the lower left corner, through two amplifiers up around the right side to the cable at the top. DC power comes in on the cable and goes to the left side through the first meander line to a power supply at the upper left through more meander lines (low pass filters) to each amplifier.
