USB Cable Attached

USB Cable Attached

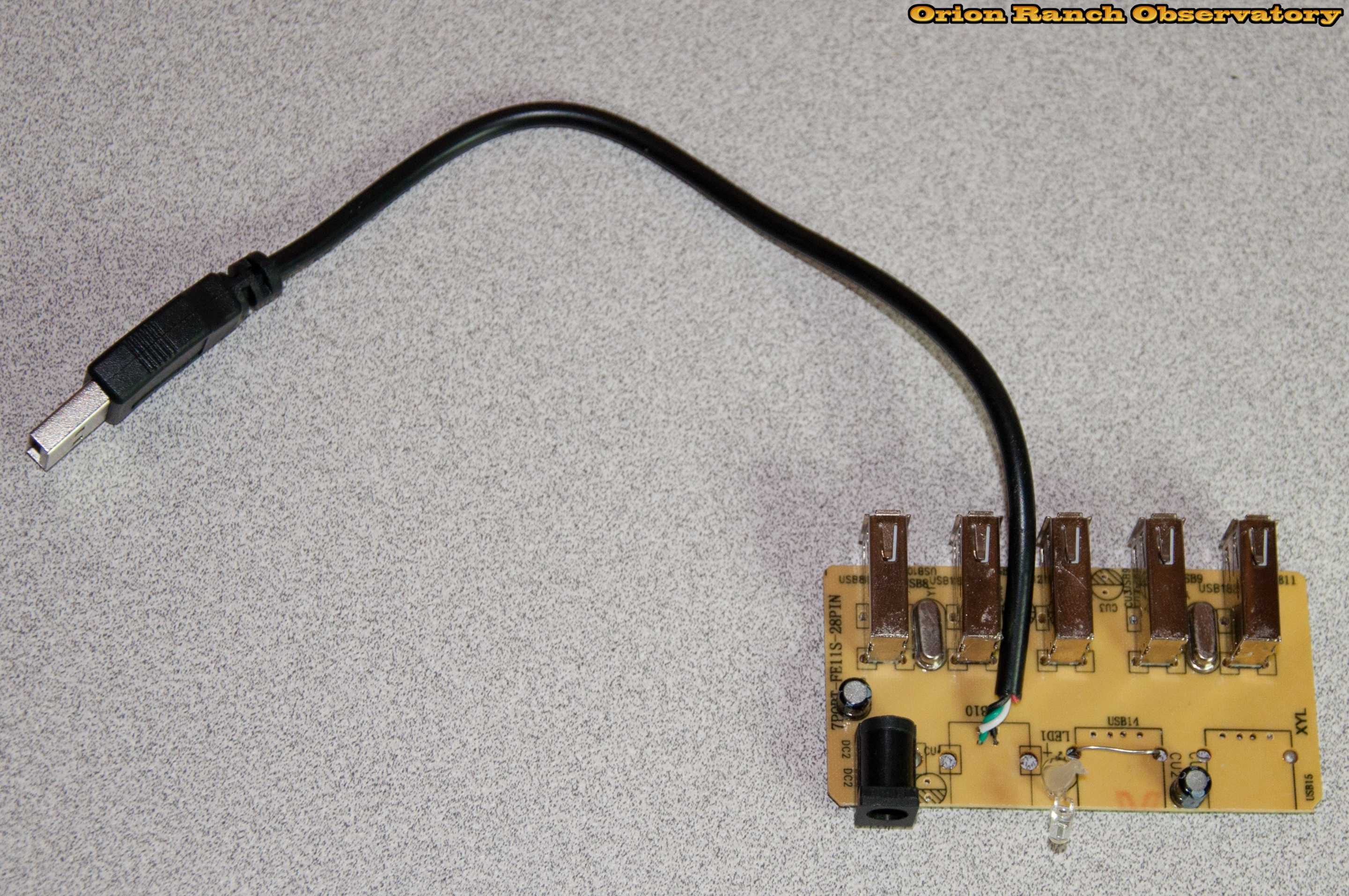

After connecting the USB cable. Note the jumper where one of the connectors was. The board used the shield of that connector as a jumper for ground. Only ground and the two data lines are connected. Power will be turned on/off remotely from a separate power supply.
