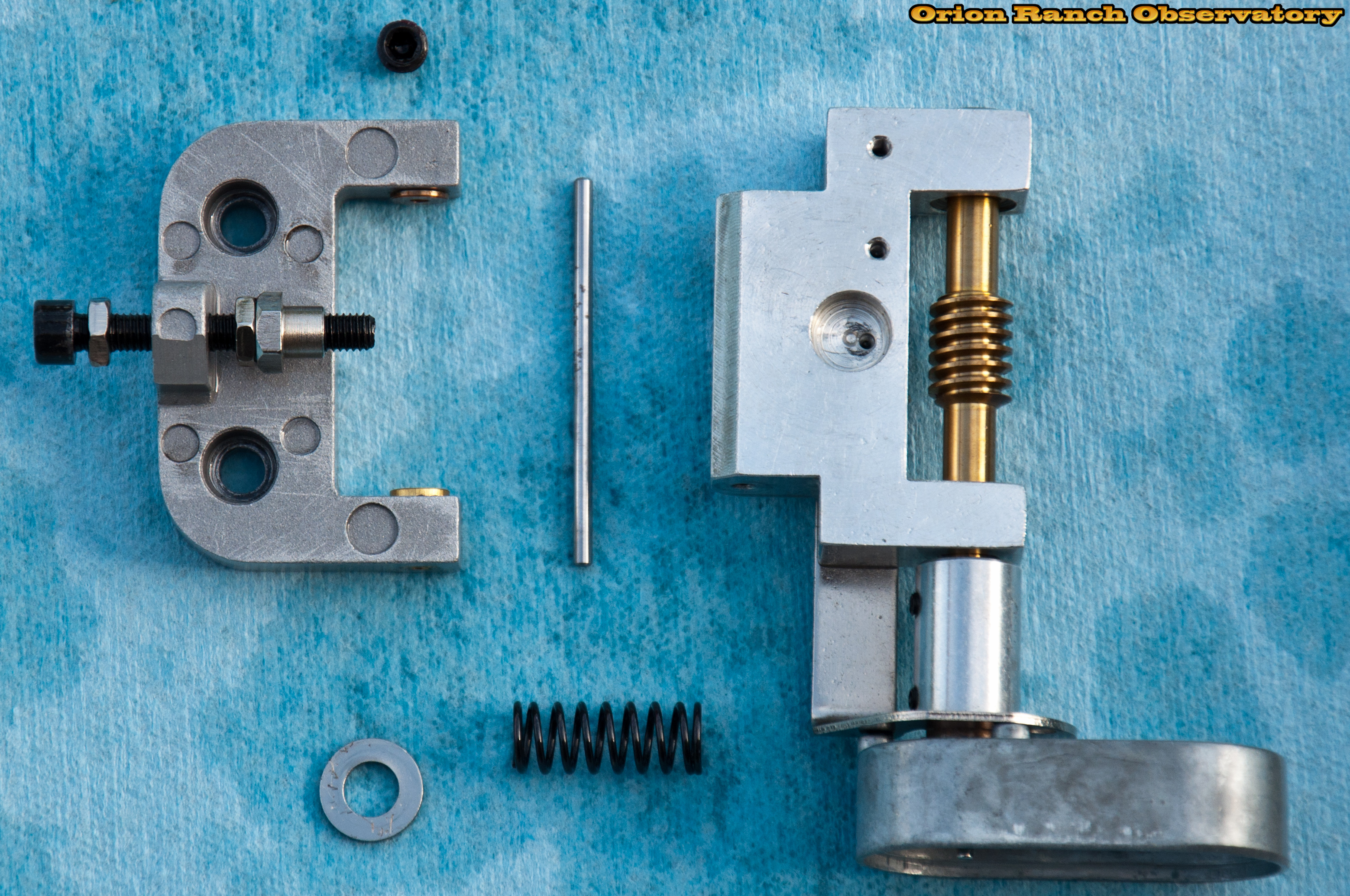

Disassembled Drive

Disassembled Drive

After removing the set screw and sliding out the pin, the assembly comes apart. The bushing inserts are both through-hole and nothing holds the pin in other than hydraulic pressure of the grease. The shaft coupling appears to be lock-tited to the shafts and won't come loose even with set screws removed.
